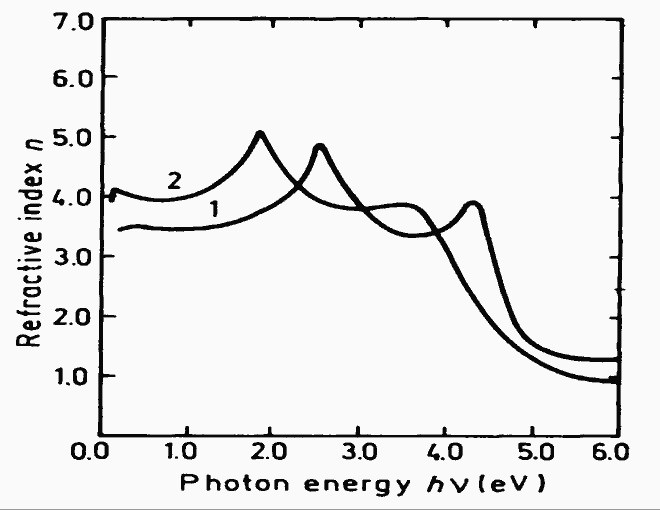

Refractive index n versus photon energy. 300 K 1. x=0 (InAs), 2. x=1 (InSb). (Adachi (1989)). |
 |

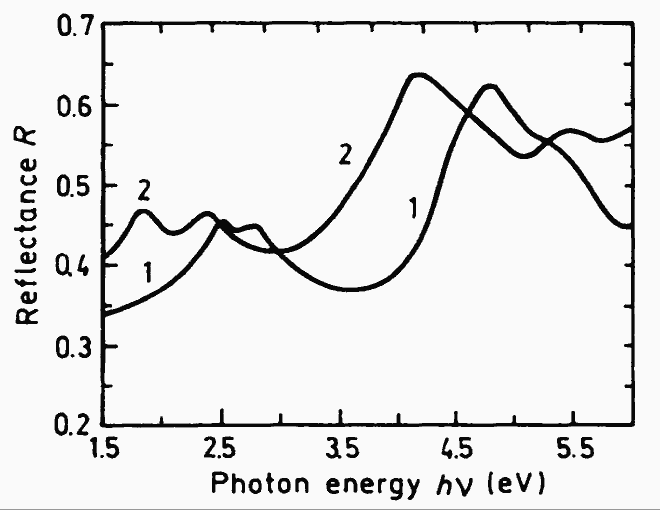

Normal incidence reflectivity versus photon energy. 300 K. 1. x=0 (InAs), 2. x=1 (InSb) (Aspnes and Studna (1983)). |
 |
Optical absorption coefficient versus photon energy for different alloy compositions. 1. x=0, 2. x=0.05, 3. x=0.07, 4. x=0.15, 5. x=0.21, 6. x=0.31, 7. x=0.89 (Stringfellow and Greene (1971)). |
 |

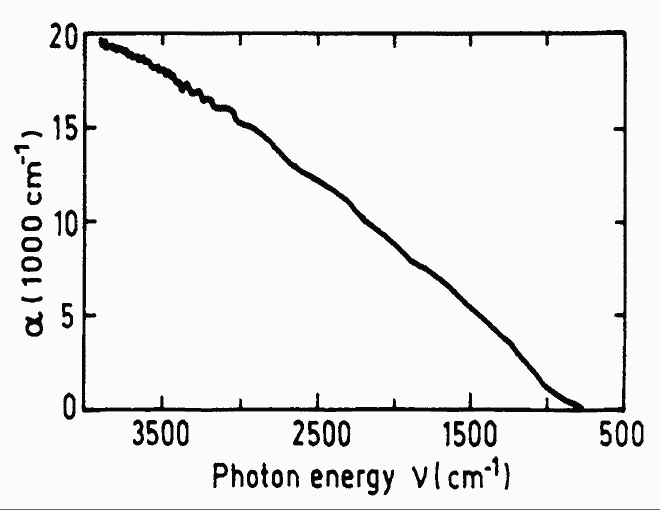

The absorption coefficient versus photon energy for x=0.78. 300 K. (Bethea et al. (1988)). |
 |

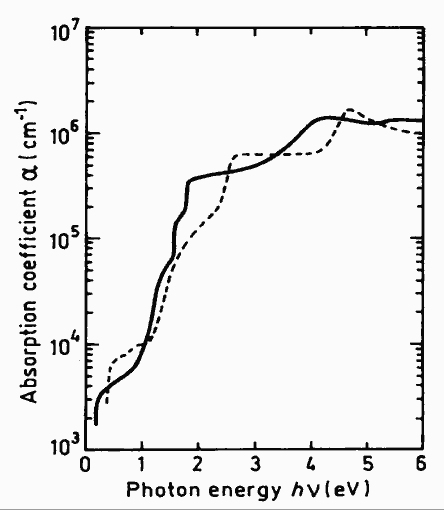

Absorption coefficient versus photon energy for x=0, (InAs) and x=1 (InSb). 300 K. Dashed line - x=0 Solid line - x=1 (Adachi (1989)). |
|
|
