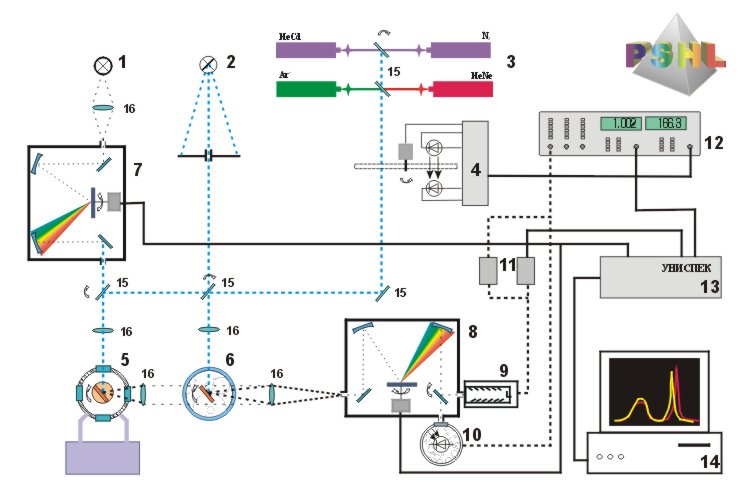

Diagrammatic representation of optical test plant
- 100W halogen lamp for PLE measurement
- 100W halogen lamp for OR measurement
- Lasers
- HeNe laser 632.8 nm, 10 mW/cm2
- Ar laser 514 nm, 100 mW/cm2
- HeCd laser 325 nm, 25 mW/cm2
- N2 laser 337.1 nm, 1 MW/cm2
- Laser beam chopper
- Helium closed loop cryostat (CTI-Cryogenics)
- N2 liquid cryostat
- Monochromator (MDR-41 - LOMO) for PLE excitation
- Monochromator (MDR-23 - LOMO) for PL and PLE measurement
- Cooled PMT, optical range 300-1100nm
- Cooled Ge p-i-n photodiode (Edinburgh Instruments), optical range 800-1700nm
- Analogue preamplifier (for synchronous detection mode) and comparator circuit (for photon counting mode)
- Lock-in amplifier (Stanford Research Systems SR510 and SR810, Unipan type 232B)
- Microprocessor controller for datalogging and monochromators remote control
- personal computer
- rotated mirrors
- lenses
|
